MaxVu110

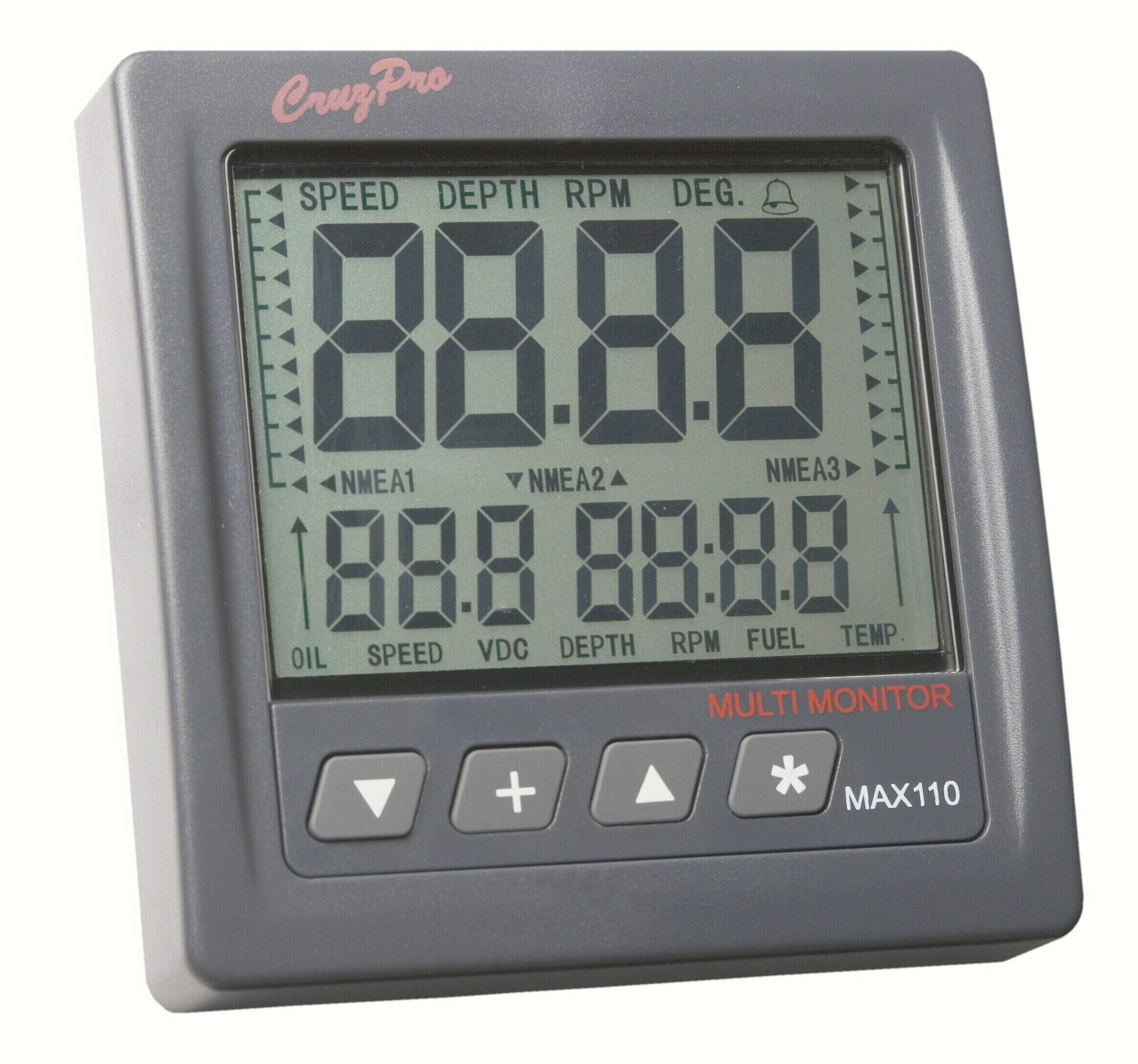

The MaxVu110 multifunction unit is an exciting new concept in
instrumentation. The MaxVu110 will simultaneously display five sets of
data on three digital displays and two bar graphs. Measure and display
data such as RPM, engine temperature, engine oil pressure, fuel and tank
levels, battery voltage, etc. You decide what set of five data to view on
each “Display Configuration”. As your instrumentation needs change you
can quickly select from 16 different display configurations with the push
of a button. You can setup some of the Display Configurations for data you
need to see while underway and setup other display configurations for use
while at anchor or fishing. The idea is that you can configure the
MaxVu110 to enable you to see the data you need for each particular
situation. Each of the 16 display configurations are highly flexible and
any particular set of data can be directed to one of the digital displays
and/or one of the two bar graphs.
Individual high and low alarm values can be set on each of the five
sets of displayed data. When data on any of the five displays falls
outside the acceptable range the built-in alarm will sound and that
display will blink providing you both a visual and audible warning of a
problem.
Display configurations are easily edited to show the data that you want
to see from a comprehensive list of data sources. Changes are
automatically saved to a nonvolatile memory. Data such as Engine Oil
Pressure, Boat Speed, Battery Voltage, etc. is measured by internal
circuitry built into the MaxVu110 and does not require an external
"brain box". Additionally, the MaxVu110 contains a built-in NMEA
data monitor with 4 input lines that can each search for two distinct NMEA
sentences for a total of 8 NMEA data sources from a list of 3700+
different NMEA sentences. The MaxVu110 will display NMEA data such as
Depth, Wind speed/direction or GPS Bearing to Waypoint, Distance to
Waypoint information. You can even set high and low alarms on the NMEA
data and select display damping for 4 channels of the NMEA data.
The MaxVu110 contains built-in calibration curves for all popular
engine temperature senders, oil pressure senders and fuel and tankage
senders manufactured by VDO, Teleflex, Faria, Stewart-Warner, GM, and
others. Both American and European ranges are recognized and you can even
create and use your own sender calibration curves.
All sixteen Display Configurations are factory preset to view the most
popular data sources but you can easily edit the Display Configurations
using your computer. The Windows software provided with the MaxVu110
enables you to easily edit the Display Configurations or create your own
from scratch. Data can be uploaded to the MaxVu110 and/or downloaded from
the MaxVu110. Display Configurations can be saved to multiple computer
files for later recall or editing.
The Windows software currently works on PC's running Win98, Win2K and
WinXP and the full software package is available on this website for
download. You can test-drive the software without the MaxVu110 and see how
easy it is to use Click
here to download the MaxVu110 Windows software.
Five levels of backlighting can be selected for nighttime viewing. The
backlights can be turned ON and OFF remotely and all set-up constants are
saved in a non-volatile memory.
The MaxVu110 is many instruments at once in a space-saving 110mm
format. You simply select the display configuration that is best suited
for what you are doing. With simple, quick installation in a standard
2-1/8” (54mm) round hole, the MaxVu110 is perfect for the boat builder
or aftermarket replacement. The MaxVu110 works on both 12V and 24V.
|
